Puncture type connectors-compatible with JST|XSR series connectors 2P~22P|0.6mm pitch IDC connector male and female chassis replacement

Category:Connector

Professional sales agent to provide: connectors|wire harness|cable products

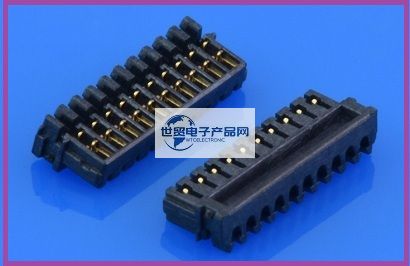

Compatible/replacement JST|JST connector|Japan Crimp Terminal|XSR series connector 2P~22P|0.6mm pitch IDC connector male and female chassis products is a: 0.6mm pitch / printed circuit board connectors / crimp, plug type; the product in the discrete crimp connector in the world's smallest 0.6mm pitch, is the board package height of 1.45mm, 3.0mm depth of miniaturized circuit board to wire connection connector, It is a miniaturized circuit board-to-wire connector with a height of 1.45mm and a depth of 3.0mm. Its main features are: space-saving, double U-shaped socket crimp section, new anti-shedding structure, corresponding to the thin line, corresponding to the fully automatic; pitch: 0.6mm, can provide alternatives Pin position: 2 ~ 22P, product color: black, product material: LCP UL94V-0 / C5191, applicable wire: AWG # 34 ~ 36. [3A Electronics provides JST|JST Connector|Japan Crimp Terminal|XSR series connector 2P~22P|0.6mm pitch IDC connector male and female chassis replacement】.


------------------------------------------------------------------------------------------------
1、Compatible / Replacement JST|JST connector|PA series connector 2P~9P|2.0mm pitch WTB connector male and female product description and parameters

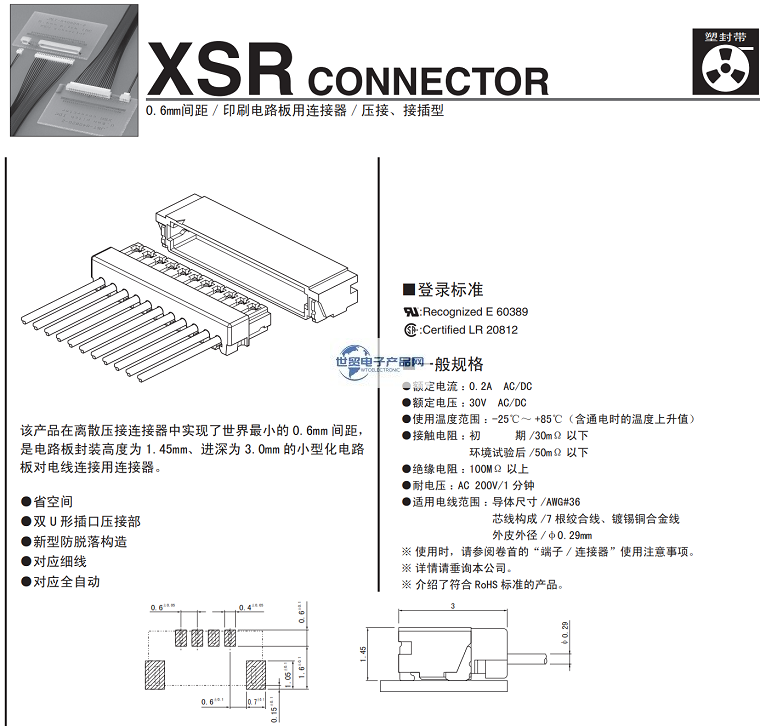

XSR   CONNECTOR系列详情:XSR   CONNECTOR系列一般电气性能规格:
类型1:IDC型●额定电流   : 0.2A AC/DC
类型2:IDC式,可拆开类型●额定电压   :30V AC/DC
间距:0.6●使用温度范围   :-25℃~ +85℃(含通电时的温度上升值)
电流:0.2A●接触电阻   :初 期 /30mΩ 以下,环境试验后 /50mΩ 以下
特点:
●绝缘电阻   :100MΩ 以上
类别名称:压接式连接器(线对板型)●耐电压   :AC 200V/1 分钟
高度:0.6●适用电线范围 :导体尺寸 /AWG#36,芯线构成 /7 根绞合线、镀锡铜合金线,外皮外径   /φ0.29mm
电压:30V
厚度:3
描述 :该产品在离散压接连接器中实现了世界最小的0.6mm间距,封装高度为1.45mm,进深为0.3mm的小型化电路板对电线连接用连接器。

------------------------------------------------------------------------------------------------
2、Compatible / Replacement JST|JST Connector|XSR Series Connector 2P~22P|0.6mm Pitch IDC Connector Male and Female Sockets Product Specification:


------------------------------------------------------------------------------------------------

3、Compatible/replacement JST|XSR series connectors 2P~22P|0.6mm pitch IDC connector male and female chassis part number/model list is available

SM02B-XSRS-ETB16XSR-36SSM06B-XSRS-ETBSM20B-XSRS-ETB22XSR-36S
SM04B-XSRS-ETB02XSR-36SSM22B-XSRS-ETB04XSR-36S20XSR-36S
10XSR-36SSM10B-XSRS-ETB06XSR-36SSM16B-XSRS-ETB

---------------------------------------------------------------------------------------------

4、Puncture connectors-compatible with JST|XSR series connectors 2P~22P|0.6mm pitch IDC connector male and female chassis replacement This product is sold by:
3A Electronics - agent sales to provide [
