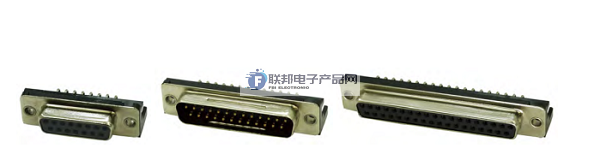

DDK|DDK Connectors|Nippon Dai-ichi Electronics 17LE series D-sub optical angle DIP connector is a: belongs to the printed substrate through-hole impregnation soldering with D-sub plug hole connector. The number of cores is 9, 15, 25, 37 cores. The connector can be mounted with a mounting bracket and a hexagonal nut for easy mounting on the other side of the connector. The surface of the metal shell is Ni plated, and the pin connector has a processed solder channel. Various grounding hardware is provided at the housing for more effective EMI countermeasures.
| 该系列产品的电气性能一般规格为： | |
| 额定电压：AC300V（r.m.s.） | 绝缘电阻：DC500Vで1,000MΩ以上 |
| 额定电流：5A／中心针 | 接触电阻：15mΩ以下 |
| 耐电压 ：AC1000V（r.m.s.）1分钟 | |

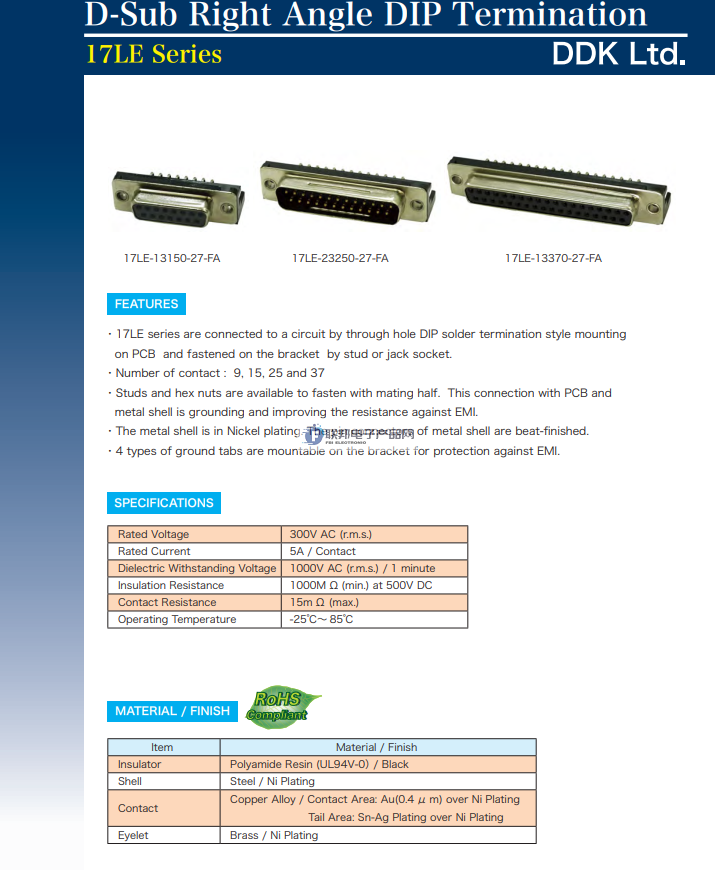

1, DDK|DDK Connectors|NIPPON ELECTRONICS 17LE SERIES D-SUB LIGHT ANGLE DIP CONNECTORS Main Product Specification Details:
| 特征: |
| ・17LE系列通过通孔DIP焊接终端式安装连接到电路通过螺柱或插孔固定在支架上。 |
| ・接触点数量：9、15、25和37 |
| ・螺柱和六角螺母可用于与配对的一半紧固。与PCB和金属外壳接地，提高抗电磁干扰能力。 |
| ・金属外壳镀镍。金属外壳的插针连接器经过精加工。 |
| ・4种接地片可安装在支架上，以防电磁干扰。 |
------------------------------------------------------------------------------------------------
2、Japan DDK | DDK Connectors | Japan Electronics 17LE Series D-sub Light Angle DIP Connector Main Part Number / Model Number.
| 17LE-13090-27(D2AB)-FA | 17LE-13090-27(D2BC)-FA | 17LE-13090-27(D2CD)-FA | 17LE-23090-27(D2AB)-FA | 17LE-23090-27(D2CD)-FA |
| 17LE-13150-27(D2AB)-FA | 17LE-13150-27(D2BC)-FA | 17LE-13150-27(D2CD)-FA | 17LE-23150-27(D2AB)-FA | 17LE-23150-27(D2CD)-FA |
| 17LE-13250-27(D2AB)-FA | 17LE-13250-27(D2BC)-FA | 17LE-13250-27(D2CD)-FA | 17LE-23250-27(D2AB)-FA | 17LE-23250-27(D2CD)-FA |
| 17LE-13370-27(D2AB)-FA | 17LE-13370-27(D2BC)-FA | 17LE-13370-27(D2CD)-FA | 17LE-23370-27(D2AB)-FA | 17LE-23370-27(D2CD)-FA |
| 17LE-13090-27(D3AB)-FA | 17LE-13090-27(D3BC)-FA | 17LE-13090-27(D3CD)-FA | 17LE-23090-27(D3AB)-FA | 17LE-23090-27(D3CD)-FA |
| 17LE-13150-27(D3AB)-FA | 17LE-13150-27(D3BC)-FA | 17LE-13150-27(D3CD)-FA | 17LE-23150-27(D3AB)-FA | 17LE-23150-27(D3CD)-FA |
| 17LE-13250-27(D3AB)-FA | 17LE-13250-27(D3BC)-FA | 17LE-13250-27(D3CD)-FA | 17LE-23250-27(D3AB)-FA | 17LE-23250-27(D3CD)-FA |
| 17LE-13370-27(D3AB)-FA | 17LE-13370-27(D3BC)-FA | 17LE-13370-27(D3CD)-FA | 17LE-23370-27(D3AB)-FA | 17LE-23370-27(D3CD)-FA |
| 17LE-13090-27(D4AB)-FA | 17LE-13090-27(D4BC)-FA | 17LE-13090-27(D4CD)-FA | 17LE-23090-27(D4AB)-FA | 17LE-23090-27(D4CD)-FA |
| 17LE-13150-27(D4AB)-FA | 17LE-13150-27(D4BC)-FA | 17LE-13150-27(D4CD)-FA | 17LE-23150-27(D4AB)-FA | 17LE-23150-27(D4CD)-FA |
| 17LE-13250-27(D4AB)-FA | 17LE-13250-27(D4BC)-FA | 17LE-13250-27(D4CD)-FA | 17LE-23250-27(D4AB)-FA | 17LE-23250-27(D4CD)-FA |
| 17LE-13370-27(D4AB)-FA | 17LE-13370-27(D4BC)-FA | 17LE-13370-27(D4CD)-FA | 17LE-23370-27(D4AB)-FA | 17LE-23370-27(D4CD)-FA |
| 17LE-23090-27(D2BC)-FA | 17LE-23090-27(D3BC)-FA | 17LE-23090-27(D3BC)-FA | ||
| 17LE-23150-27(D2BC)-FA | 17LE-23150-27(D3BC)-FA | 17LE-23150-27(D3BC)-FA | ||
| 17LE-23250-27(D2BC)-FA | 17LE-23250-27(D3BC)-FA | 17LE-23250-27(D3BC)-FA | ||
| 17LE-23370-27(D2BC)-FA | 17LE-23370-27(D3BC)-FA | 17LE-23370-27(D3BC)-FA |
------------------------------------------------------------------------------------------------
3, Japan DDK - DDK | Japan's first electronic 17LE series D-sub light angle DIP connector This product seller:
3A Electronic Network-agent sales [Japan DDK connectors-DDK | Japan Electronics 17LE series D-sub light angle DIP connector] and the contents of the second item in the table list of all (material number / model) connector products; if you want to buy or understand what we can provide connector | harness | cable product solutions, welcome to contact us through the following way.
