Compatible/Replacement for I-PEX|I-PEX Connectors|Japanese Seiko|20439-040E-01|0.5mm Pitch LVDS Connector Female chassis connector is a 0.5mm pitch LVDS connector; its main features are: larger power supply to support the carrying of AWG#32 electronic wires, support for eDP HBR2 (5.4 Gbps/lane), anti-noise design of the multi-grounding point, vertical insertion and removal, 0.5mm pitch, very fine coaxial cable connector; its main features are: larger power supply to support carrying AWG#32 electronic wires; can be soldered to different sizes of very fine coaxial cable and electronic cable simultaneously; multi-grounding design to effectively shield electromagnetic radiation. Extremely fine coaxial cable connector; its main features are: more power supply applications to support carrying AWG#32 electronic wire; can be simultaneously soldered to different sizes of very fine coaxial cable and electronic wire; multi-point grounding design, effective shielding of electromagnetic wave interference.[3A Electronic Network offers compatible I-PEX|I-PEX Connectors|Japanese Seiko|20439-040E-01|0.4mm Pitch LVDS Connector Female Chassis Replacement].
------------------------------------------------------------------------------------------------

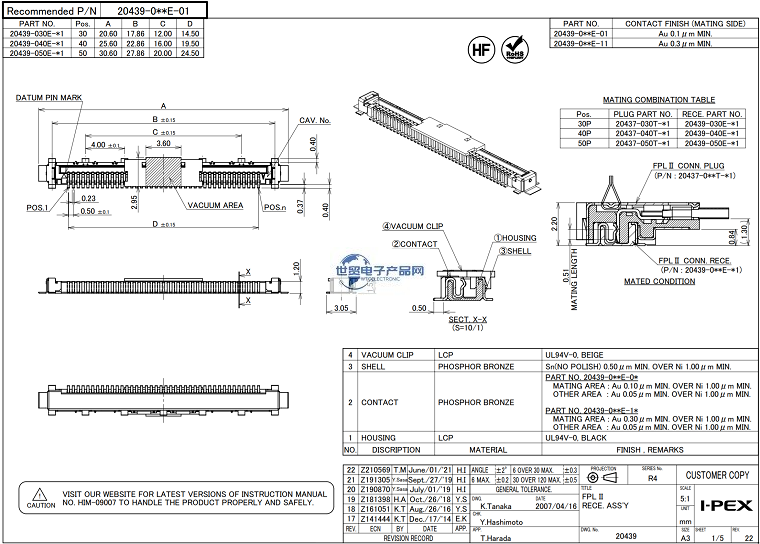

1, Compatible / Replacement I-PEX|I-PEX Connectors|Japan Seiko|20439-040E-01|0.5mm Pitch LVDS Connector Female chassis connector product related technical parameters:
| 嵌合类型 | 垂直 |
| Contact pitch | 0.50 mm |
| Height | 2.40 Max (2.20 Nom.) , |
| Depth | 6.10 mm |
| Width Formula | 5.8+(0.5*?) mm |
| Pin count | 40 |
| Micro-Coaxial Cable (AWG) | #36 #38 #40 #42 #44 #46 |
| Discrete Cable (AWG) | #32 #34 #36 #38 #39 #40 #42 #44 #46 |
| Current rating | 0.3A AC/DC [AWG #40] per contact/up to 50 contacts 0.6A AC/DC [AWG #38] per contact/up to 6 contacts 0.8A AC/DC [AWG #40] per contact/up to 4 contacts 1.0A AC/DC [AWG #34, 32] per contact/up to 7 contacts |
| Applicable Standards (Reference Only) | USB 3.1 Gen 1 (5 Gbps) eDP HBR 3 (8.1 Gbps) eDP HBR 2 (5.4 Gbps) eDP (2.7 Gbps) HDMI 2.0 (6 Gbps) V-By-One HS 1.4 (4 Gbps) MiPi standards |
| Full shielding (ZenShield®) | No |
| Mechanical lock | No |
