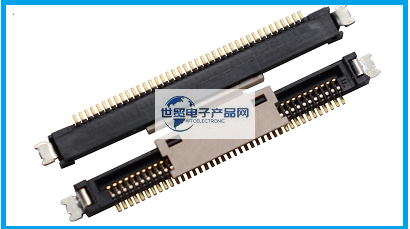

Compatible / Replacement I-PEX|I-PEX Connectors|Japanese Seiko|20374-R40E-31|0.4mm Pitch LVDS Connector Female chassis connector product is a: narrow, rugged, vertical insertion and removal, horizontal outlets, able to withstand high current (AWG#34) Pitch 0.4 mm, high temperature, high humidity optional very thin coaxial cable connector female chassis connector; its main features are: Narrow and small design suitable for piercing, power supply use with larger can be used with AWG#34 cable; unique W-Point double contact design, to achieve high contact reliability; high temperature/high humidity resistance (autoclave) optional.[3A Electronic Network offers compatible I-PEX|I-PEX Connectors|Japanese Seiko|20374-R40E-31|0.4mm Pitch LVDS Connector Female Chassis Replacement].
------------------------------------------------------------------------------------------------
1, Compatible/Replacement I-PEX|I-PEX Connectors|Japanese Seiko|20374-R40E-31|0.4mm pitch LVDS connector female products related technical parameters:
| 嵌合类型 | 垂直 |
| Contact pitch | 0.40 mm |
| Height | 1.85 Max (1.65 Nom.) , |
| Depth | 3.00 mm |
| Width Formula | 5.80+(0.4*?p) mm |
| Pin count | 40 |
| Micro-Coaxial Cable (AWG) | #38 #40 #42 #44 #46 |
| Discrete Cable (AWG) | #34 #36 #38 #39 #40 #42 #44 #46 |
| Current rating | 0.24A AC/DC [AWG #42] per contact/up to 50 contacts 0.25A AC/DC [AWG #40] per contact/up to 50 contacts 0.30A AC/DC [AWG #40] per contact/up to 32 contacts 0.35A AC/DC [AWG #36] Pper contact/up to 50 contacts 0.40A AC/DC [AWG #36] per contact/up to 37 contacts 0.35A AC/DC [AWG #34] per contact/up to 50 contacts 1.00A AC/DC [AWG #34] per contact/up to 2 contacts |
| Applicable Standards (Reference Only) | USB 3.1 Gen 1 (5 Gbps) eDP HBR 3 (8.1 Gbps) eDP HBR 2 (5.4 Gbps) eDP (2.7 Gbps) HDMI 2.0 (6 Gbps) V-By-One HS 1.4 (4 Gbps) MiPi standards |
| Full shielding (ZenShield®) | No |
| Mechanical lock | No |
------------------------------------------------------------------------------------------------
2, Compatible/Replacement I-PEX|I-PEX Connectors|Japan Seiko|20374-R40E-31|0.4mm pitch LVDS connector female chassis connector specification reference table:
------------------------------------------------------------------------------------------------

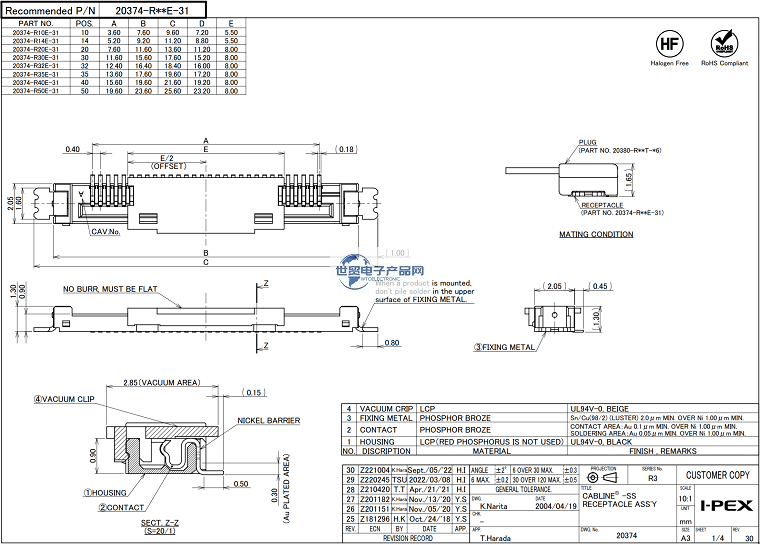

3, Compatible / Replacement I-PEX|I-PEX Connectors|Japan Seiko|20374-R40E-31|0.4mm pitch LVDS connector female reference drawings:
