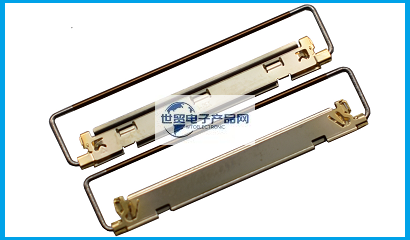

Compatible/Replacement I-PEX|I-PEX Connectors|Japanese Seiko|20645-040T-01|0.5mm Pitch FPC Male Chassis Connector product is a: 0.5 mm pitch, horizontal mating style, FPC male chassis connector with mechanical locking mechanism; its main features are: mechanical locking mechanism prevents connector from incomplete mating/non-mating and disengagement; EMI shielding and multi-point grounding design; I-PEX VS series variety of connectors to choose from; contact pitch (mm): 0.500; Height: 1.10 Max (1.00 Nom.) Grounding design; I-PEX VS Series connectors are available in a variety of options; Pitch (mm): 0.500; Height: 1.10 Max (1.00 Nom.) ,Number of Pins: 40P; Insertion Type: Horizontal.[3A Electronic Network offers compatible I-PEX|I-PEX Connectors|Japanese Seiko|20645-040T-01|0.5mm pitch FPC type male chassis connector replacement].
------------------------------------------------------------------------------------------------
1, compatible / alternative I-PEX | I-PEX connectors | Japan Seiko | 20645-040T-01 | 0.5mm pitch FPC type male chassis connector product related technical parameters:
| 嵌合类型 | 水平 |
| Contact pitch | 0.50 mm |
| Height | 1.10 Max (1.00 Nom.) , |
| Depth | 5.97 mm |
| Width Formula | 6.15+(0.5*?p) mm |
| Pin count | 30 40 |
| FPC/FFC Thickness | 0.28 |
| Current rating | 0.3A / Signal pin |
| Full shielding (ZenShield®) | No |
| Mechanical lock | Yes |
| Shielded FPC / FFC | Yes |
| Other Features | 屏蔽式FFC/FPC 高保持力机械锁扣 |
------------------------------------------------------------------------------------------------
2, Compatible I-PEX|I-PEX Connectors|Japanese Seiko|20645-040T-01|0.5mm pitch FPC type male chassis connector reference drawings:
------------------------------------------------------------------------------------------------
3, FPC Type Connectors - Compatible with I-PEX|20645-040T-01|0.5mm Pitch FPC Type Male Chassis Connector Replacement Seller of this product:
