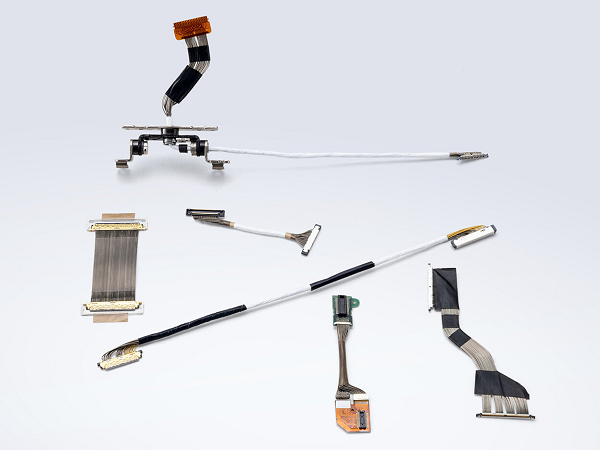

Under the background of the rapid development of light and thin and high-speed electronic equipment, whether it is notebook computers, tablet devices, camera modules, AR/VR head displays, or unmanned aerial vehicles and vehicle gauge imaging systems, the dependence on "extremely fine coaxial wiring harness" is increasing. It not only needs flexible wiring in limited space, but also undertakes the key task of high-speed transmission. This article will take I-PEX 20373-R30T-06 as an example, from structural characteristics, typical applications to production points, to take you to understand why it has become a common configuration in very fine coaxial harness applications.

---

1. the value of very fine coaxial wire harness: small volume × high-speed transmission

Very fine coaxial wire harness can play a role in complex and compact equipment, mainly due to the following characteristics:

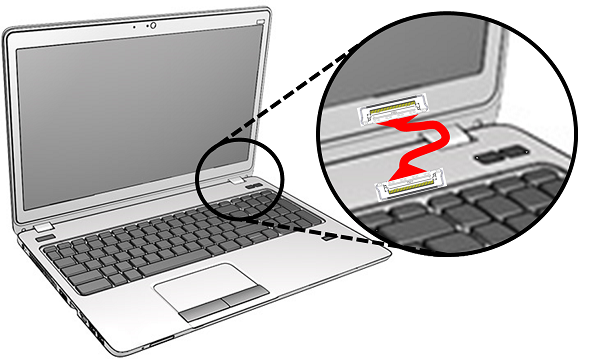

1.1. Ultra-small size, suitable for limited space: the wire diameter can be as small as AWG 46, with extremely high flexibility, can bypass hinges, folding structures and narrow gaps, and is the only choice for internal wiring of light and thin equipment.

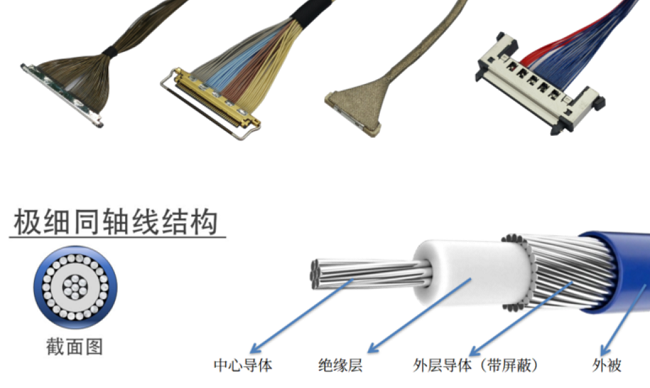

1.2. Stable high-speed signal transmission capability: The coaxial structure has excellent impedance consistency and electromagnetic shielding capability, which can meet high-bandwidth applications such as high-speed video signals, MIPI camera interfaces, and data links.

1.3. Excellent anti-interference performance: Multi-layer shielding effectively reduces EMI and crosstalk, allowing it to maintain stable transmission performance in high-density electronic equipment.

Therefore, when the equipment requires small size, fast speed, good shielding, and high reliability, the extremely thin coaxial wiring harness has almost become the industry's default solution.

---

2. Brands in Spotlight: Why I-PEX?

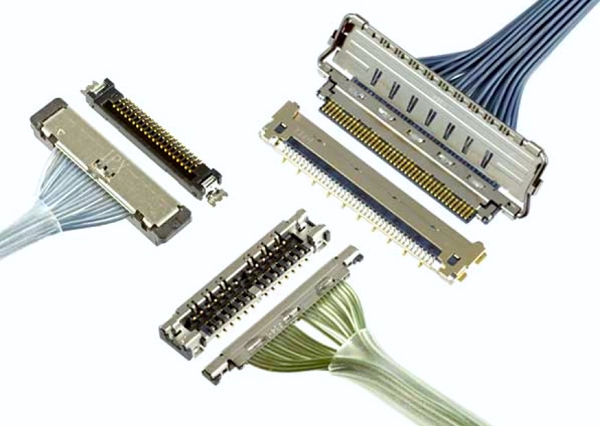

As the industry's leading micro high-speed connector brand, I-PEX CABLINE series are often used in thin and light electronic equipment, and the CABLINE-SS series is designed for high-speed and micro coaxial cable, with the following characteristics:

2.1, 0.4mm ultra-small spacing, support for high-density wiring-very suitable for micro, highly integrated equipment connection layout.

2.2. Low plug-in height (about 1.85mm)-reserve more space for the whole machine structure and improve design flexibility.

2.3. Reliable contact structure (W-point contact)-improve shock resistance and contact stability, and reduce signal abnormalities caused by vibration.

2.4, support AWG40-46 micro coaxial cable ----- adapt to a variety of wire diameter, so that the product is more versatile.

2.5, in line with RoHS, REACH and other environmental protection standards.

Because of the stable and reliable structure and excellent electrical performance, I-PEX has become the preferred brand for many engineers in the micro coaxial wiring harness.

---

Key experience in the production of 3. very fine coaxial wire harnesses

Based on extensive production experience, the following process points determine the final product quality of the very thin coaxial wire harness:

3.1, cable specification matching: different AWG micro coaxial cable must be matched with the corresponding welding, crimping process, otherwise it will affect the impedance control, shielding effect and reliability.

3.2. Structural size and assembly space planning: The design of connector height, width, opening direction, etc. will directly affect the assembly of the whole machine, especially in complex devices such as folding equipment and camera modules.

3.3. High-speed signal integrity adjustment: including impedance matching, crosstalk verification, bending life test, shielding structure processing, to ensure the stability and consistency of high-speed wiring harness.

3.4. Reliability test: such as bending life, tension, vibration, high and low temperature impact and other items to ensure the stable performance of the wiring harness in long-term use.

Because the I-PEX 20373-R30T-06 is very mature in terms of size, electrical performance and structural stability, it is widely used in high-speed very fine coaxial wiring harness solutions.

---

Very thin coaxial wiring harness in the light and thin electronic equipment in the high speed transmission and small space wiring of the dual task; and in many connector scheme, I-PEX 20373-R30T-06 with its small spacing, low height, high reliability and multi specification micro coaxial cable compatibility, become the industry representative configuration choice.

I amThunder speed very fine coaxial wire harness network], long-term deep cultivation and high-speed transmission of extremely fine coaxial wire harness and precision connector production and development can provide stable and reliable alternative support. For details, please contact Manager Zhang 18913228573 (WeChat with the same number).
